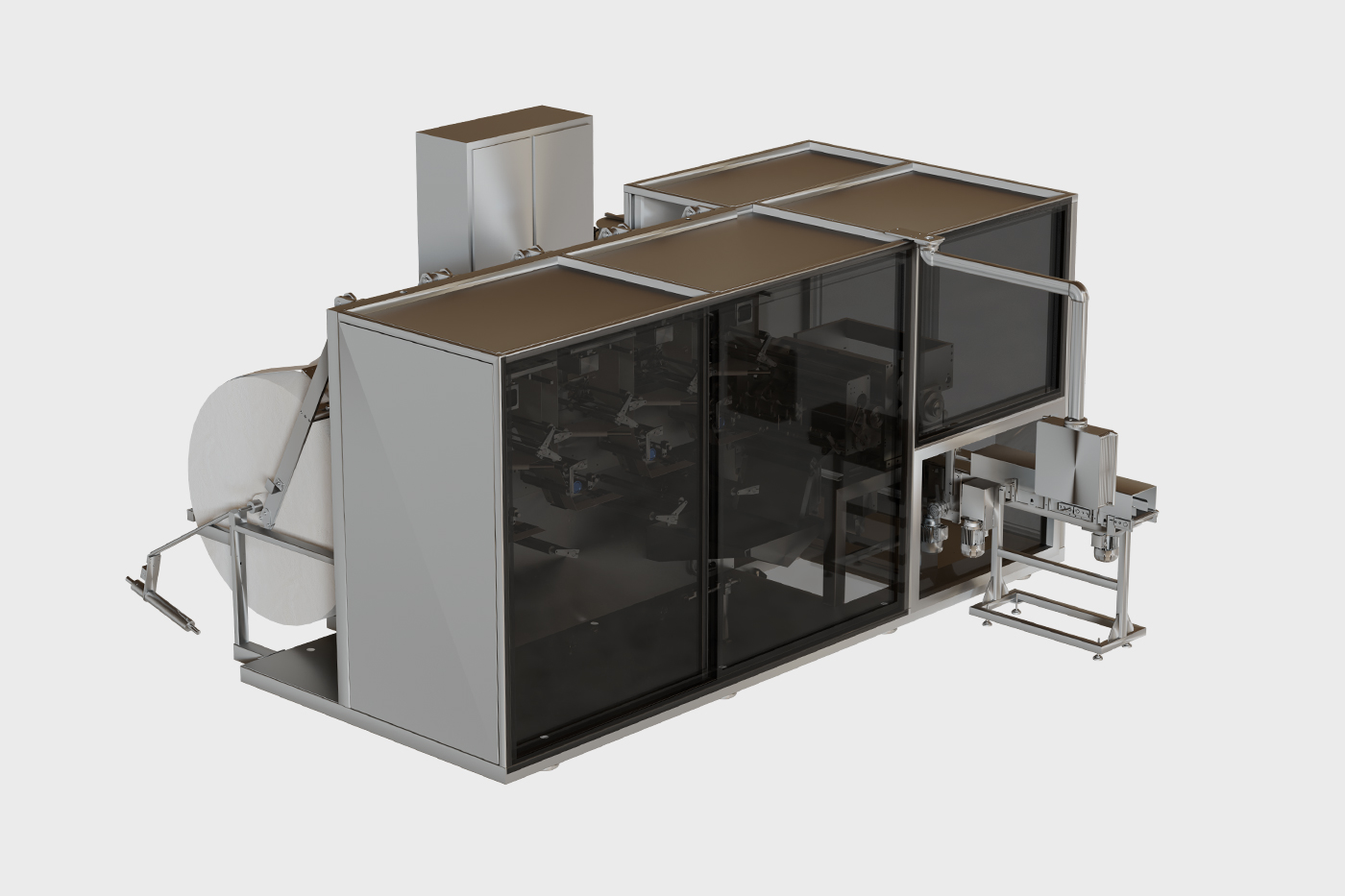

Automatic Cross Folding Machine
Public Health Service of Department of Health, Education and Welfare, Washington DC USA, comply with FDA standards
Semi-automatic, sensor controlled
| Folding | Z Cross Fold |
| Control System | Full servo controlled |
| Folding Type | Mechanical |
| Production Efficiency | 90% |
| Number of Lane | 4 |
| Number of Roll Station | 2 |
| Number of Blades | 4 |
| Slitting Station | 1 (4 blades) |
| Substrate | Spunlace |
| GSM | 30 – 80 gsm |
| Liquid dosing | up to 200% |
| Design speed | 1400 wipes/ minute |
| Max Length | 100mm (200 mm unfolded) |
| Max-Min product width | 110mm / 55 mm |
| Max-Min Roll width | 350 mm / 180mm |
| Max. Roll Diameter | 1200 mm |
| Number of min rolls | 1 |
| Core diameters | 76mm |
| Air Pressure | 6-8 Bar |
| Liquid tank | 250 Litre |
| Servos & Drives | Sigmatek, Beckhoff |
| Control system | PLC |
| Power supply | 380V AC / 50 Hz / 15 Amp / 20 KW |
| Screen | Touch screen |
Upgrade your operations with temcon – precision, speed, and innovation for a smarter production line!
